Why Ground Clearance Matters for Rough Terrain Forklifts?

Your powerful rough terrain forklift¹ is stuck, wheels spinning in the air. The whole site has stopped, all because of a small hump in the ground you didn't even see.

High ground clearance² matters because it prevents the forklift's undercarriage from hitting obstacles³. This stops the forklift from "bellying out," an event that lifts the drive wheels off the ground, causing a complete loss of traction, no matter how powerful the engine is.

I've seen a lot of good forklifts, even models with strong engines and 4WD system⁴s, get helplessly stuck in the middle of a job. The reason is almost always the same: the ground clearance was too low. The moment the belly of that machine touches the dirt, a hidden rock, or a crest of gravel, it's game over. It doesn't matter how much power you have if your wheels aren't touching the ground. This is why high clearance isn't just another number on a spec sheet; it's the difference between a machine that keeps moving and a machine that brings your entire operation to a grinding halt.

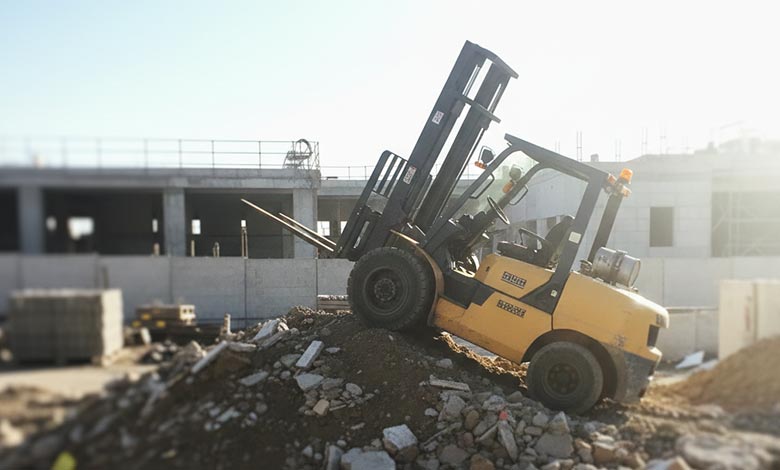

What actually happens when a forklift 'bellies out'?

Your machine suddenly stops dead, but the engine is still roaring. It feels completely stuck, and now you have a major recovery operation on your hands, delaying the entire project.

When a forklift 'bellies out⁵,' its chassis or an axle gets caught on an obstacle. This lifts the drive wheels partially or fully off the ground, rendering the drivetrain useless and making the forklift an immovable object.

I always explain this as the machine's "break-even point" for traction. Once that frame hits the ground, you have a multi-ton paperweight. From a physics perspective, the problem is simple but critical. The weight of the forklift, which is supposed to be pressing the tires onto the ground to create grip, is now being supported by the stuck undercarriage.

Here's why it's such a complete failure:

• Total Traction Loss: Even if the wheels are still touching the ground slightly, there isn't enough downward pressure for the treads to bite. The wheels will just spin freely in the air or on the loose surface.
• No Power Transfer: Your engine can be running at full throttle, but that power has nowhere to go. The connection between the engine and forward movement has been physically broken by the lack of grip.
• Difficult Recovery: A bellied-out forklift often can't be just towed out easily. It frequently requires another heavy machine⁶, like an excavator⁷ or a larger loader, to lift it off the obstacle. This turns a small problem into a long and costly delay.

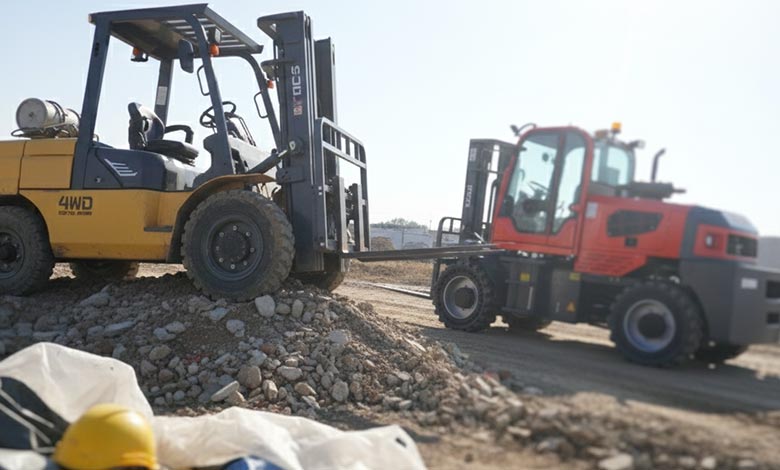

Isn't having 4WD enough to avoid getting stuck?

You invested in a 4WD system⁴ specifically to handle tough conditions. So why would it still get stuck on a simple bit of uneven ground that a person could step over?

No, 4WD is not enough if the ground clearance² is too low. Four-wheel drive is useless when the wheels are lifted off the ground. Traction is still king, and you can't have traction without ground contact.

This is one of the biggest misconceptions I see. People understandably think 4WD is the ultimate solution for rough terrain. While it's absolutely essential for dealing with mud, slopes, and slippery surfaces, it does not make the forklift immune to the laws of physics. 4WD multiplies your potential for traction, but it can't create traction out of thin air.

Think about it this way:

Feature	What It Solves	What It CAN'T Solve
4WD System	Distributes power to all wheels to overcome slippery surfaces and climb slopes. Prevents individual wheel spin.	Prevents the machine's frame from physically getting caught on an obstacle. It cannot function if the wheels are not on the ground.
High Ground Clearance	Allows the forklift's frame and axles to pass over obstacles like rocks, ruts, and debris without getting caught.	Does not provide extra grip on muddy or icy surfaces. It only ensures the machine can make contact with that surface.

I've had customers tell me, "My 4WD forklift got stuck on a small dirt pile!" It wasn't the fault of the 4WD system⁴. The problem was that the pile was just high enough to lift the frame and immobilize the machine. They work together, but clearance comes first.

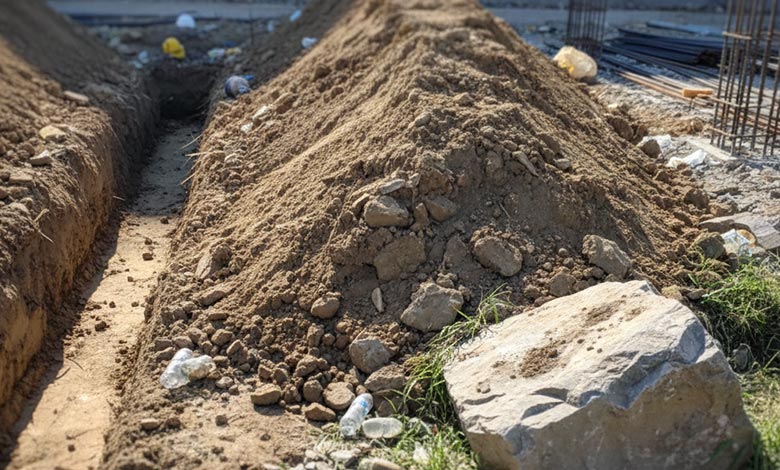

What are the real-world obstacles that stop a low-clearance forklift?

You don’t have massive boulders on your site, just typical uneven ground. You're wondering what kind of seemingly minor obstacles³ can actually bring your operations to a standstill.

The most common obstacles are not dramatic; they are subtle and often unseen. A slightly raised drainage culvert, the hard edge of a trench, a crest in a gravel road, or even a soft patch of ground can stop a low-clearance machine.

When I walk a site with a client, I point these things out all the time. Most rough terrain problems aren't caused by the obvious mud pit; they're caused by the small, constant imperfections of an active worksite. Experience has shown me that these are the most frequent culprits:

• Cresting: When driving over a small hill or ramp, the angle can be just sharp enough at the top for the middle of the forklift's chassis to make contact before the wheels can start the descent.
• Debris: A forgotten block of wood, a pile of leftover soil, or a medium-sized rock that is partially buried can be enough to catch an axle.
• Rut Edges: After rain, vehicle tracks create hardened ruts. Trying to drive across these ruts, instead of in them, can easily cause an axle or the frame to get caught on the hard edge.
• Soft Ground: Even on flat-looking ground, a soft patch can cause the wheels to sink just enough for the forklift's frame to bottom out, bogging it down completely.

These small hazards add up, and without adequate clearance, each one is a potential work stoppage.

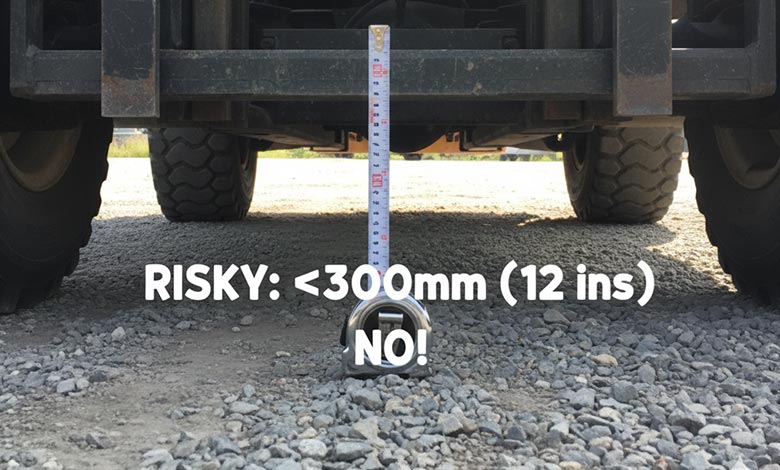

Is there a minimum ground clearance to look for?

You're convinced you need high clearance⁸, but you need a concrete number for your procurement checklist. What’s the industry benchmark that separates a truly capable machine from a risky one?

Yes, there is a clear benchmark. Anything below 300mm (about 12 inches) presents a significant risk. This is why many experienced buyers will not consider a machine with less than 350mm (about 14 inches) of clearance.

These aren't just arbitrary numbers; they are based on years of feedback from operators and site managers working in the real world. The line is surprisingly clear. I've had so many customers tell me the same thing: "If the ground clearance² isn't high enough, the job stops."

Here’s how we at BLANC-ELE have responded to that direct feedback:

• The 300mm Risk Zone: We consider any machine with under 300mm of clearance to be unsuitable for anything beyond compacted gravel lots. The risk of getting high-centered is simply too great.
• The 350mm Industry Standard: For our popular 3-ton and 3.5-ton rough terrain models, we engineered them to achieve 350mm of clearance. This is the number that our customers repeatedly told us was the "safe minimum" for confident operation on unprepared sites.
• The 380mm+ for Heavy Duty: For our larger 5-ton models and up, which carry heavier loads and often work in more demanding environments like mining or large-scale construction, we increased the clearance to over 380mm. This provides an extra margin of safety and ensures uptime even when the terrain is at its worst.

This specification isn't about marketing; it's about uptime.

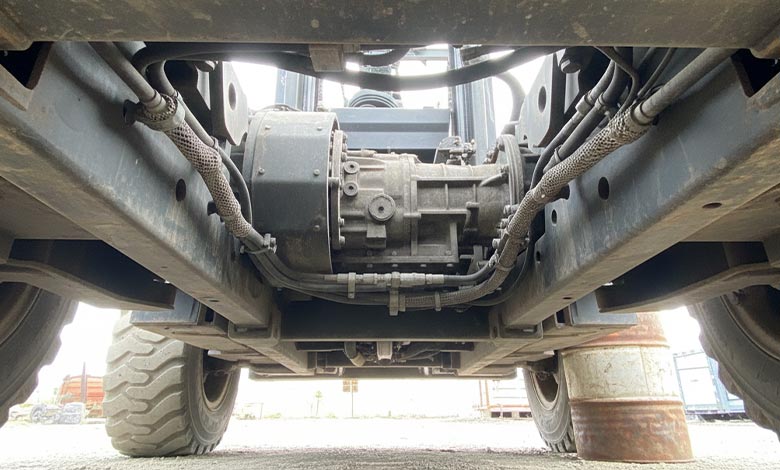

How does high clearance protect the machine itself?

You know high clearance prevents getting stuck, but you're also responsible for the total cost of ownership⁹. Does it offer any other benefits, like reducing wear and tear or preventing damage?

Absolutely. High ground clearance is a critical form of protection. It shields vital undercarriage components¹⁰ like the transmission, drive shafts, and hydraulic lines from costly impact damage¹¹ from rocks, stumps, and debris.

This is an aspect of TCO that procurement managers like you immediately understand. A single impact with a hidden rock or piece of rebar can be catastrophic. A low-clearance forklift is constantly exposing its most vulnerable and expensive parts to danger. Think of high clearance as built-in insurance for the machine's core systems.

Here’s what you’re protecting:

• Oil Pan & Transmission: These are often the lowest-hanging and most expensive components. A cracked oil pan can lead to immediate engine failure. A damaged transmission means the forklift is out of service for an extended period.
• Driveshafts & Axles: These components transfer power to the wheels. Bending a driveshaft or cracking an axle housing from an impact is a major and costly repair.
• Hydraulic Lines & Hoses: The undercarriage is full of hydraulic lines¹². A snagged or crushed hose can cause a loss of steering, mast function, and create a significant environmental hazard from leaking fluid.

By keeping these components high above the ground, you are actively preventing the most common sources of expensive, downtime-inducing damage on a rough terrain site.

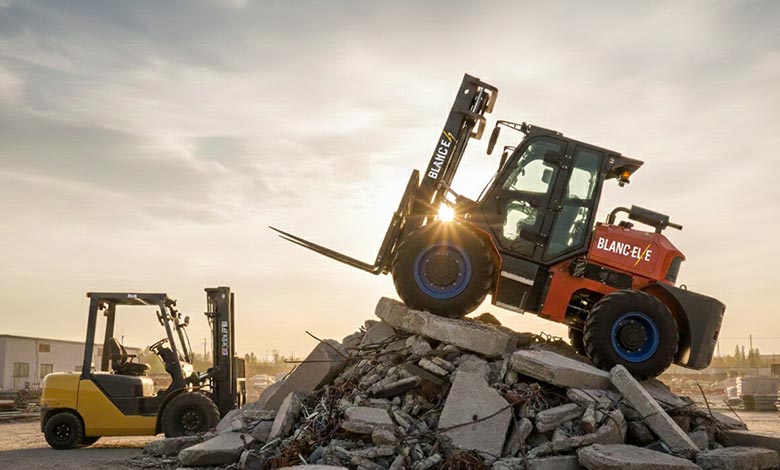

Conclusion

High ground clearance isn't just a feature; it's the foundation of a true rough terrain forklift¹. It ensures uptime, protects your investment from damage, and gives your operator the confidence to work safely.

---
